Bathroom Refurbishment & Structural Repair in Warley, Brentwood (CM14)

Project Summary

Location: Warley, Brentwood, Essex (CM14)

Client: Private Residential – Mr Andrew Thompson

Services Provided: Leak detection, plumbing repairs, structural floor repair, full bathroom refurbishment

Key Works: Leak investigation, structural floor reconstruction, full bathroom redesign and installation

Project Type: Residential

Surrounding Areas: Brentwood, Shenfield, Essex

Contact Us
Image link

Project Overview

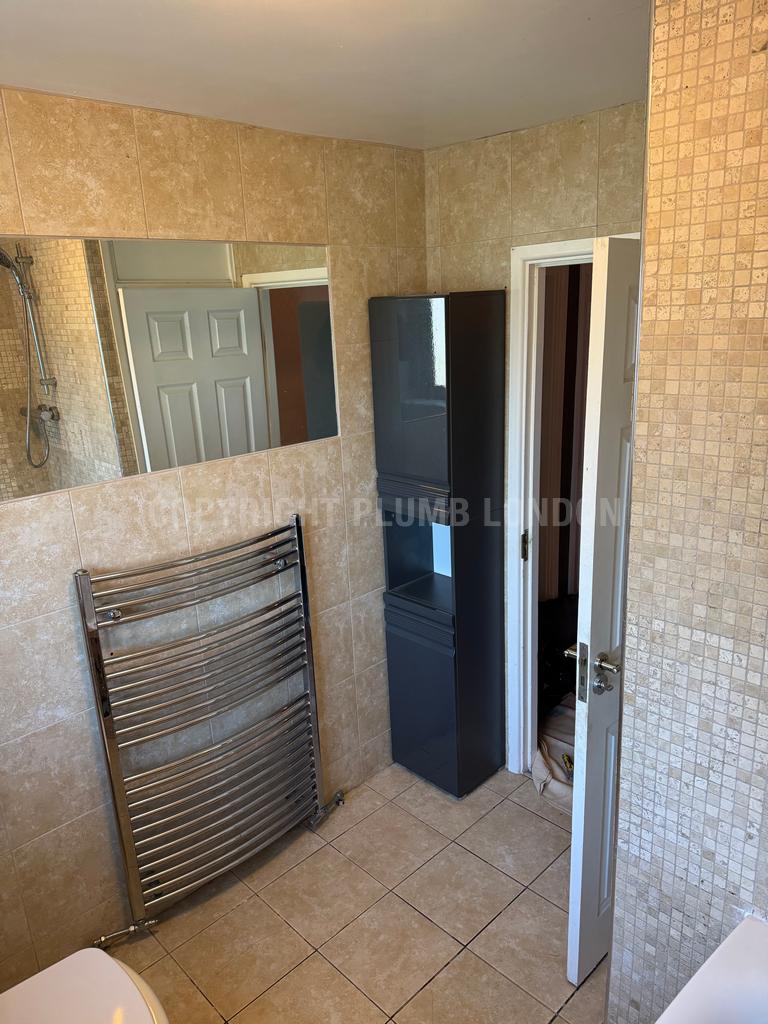

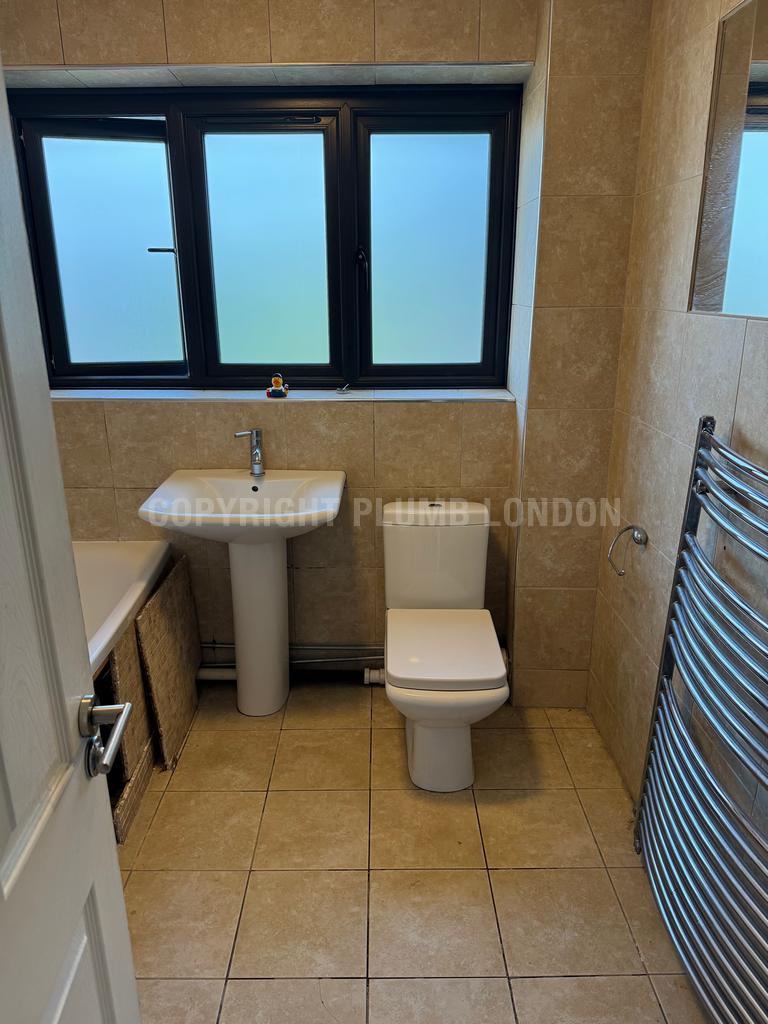

Plumb London was instructed to investigate an intermittent leak affecting a residential property in Warley, Brentwood (CM14), presenting as water ingress through the kitchen ceiling from the bathroom above.

Initial inspection indicated the issue extended beyond a minor fault, with evidence of concealed failure within the bathroom installation. Given the risk of ongoing water damage to structural elements, a full investigation was required to assess both the plumbing system and surrounding building fabric.

The project progressed from a leak diagnosis into a full bathroom refurbishment and structural repair, following the discovery of compromised flooring caused by prolonged water ingress.

Scope of Works

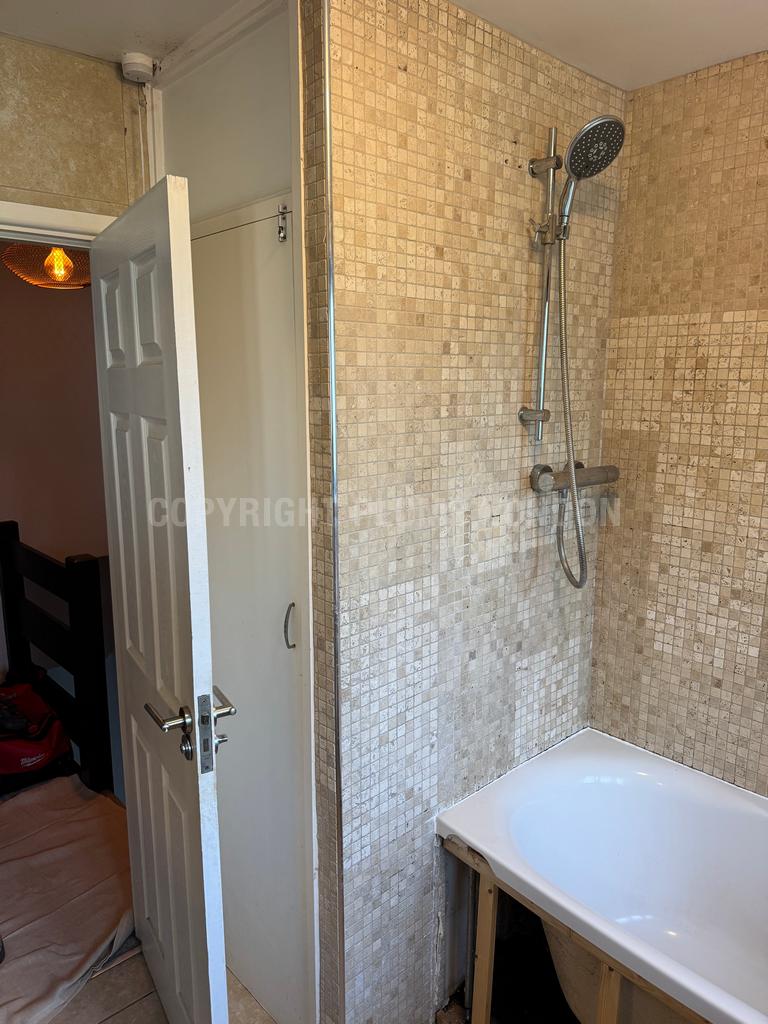

  • Investigation of intermittent leak during shower use
  • Replacement of faulty toilet fill valve flexible hose

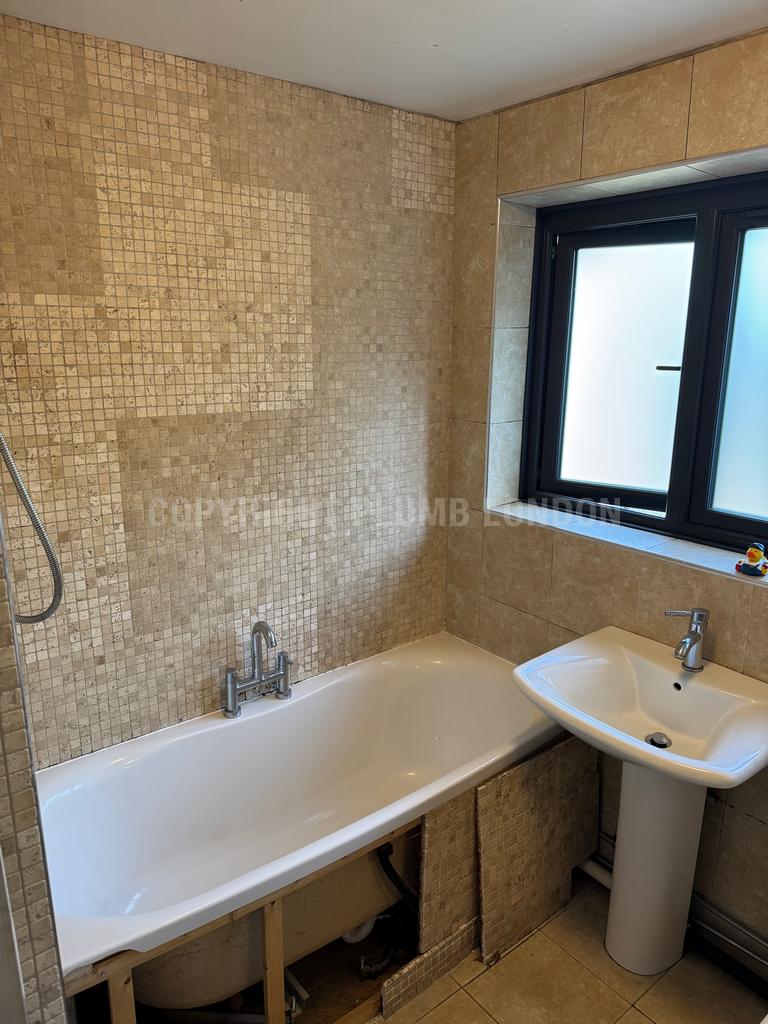

  • Removal of tiled bath panel for access and inspection
  • Resealing of bath using sanitary-grade sealant
  • Full bathroom strip-out
  • Removal of compromised floorboards

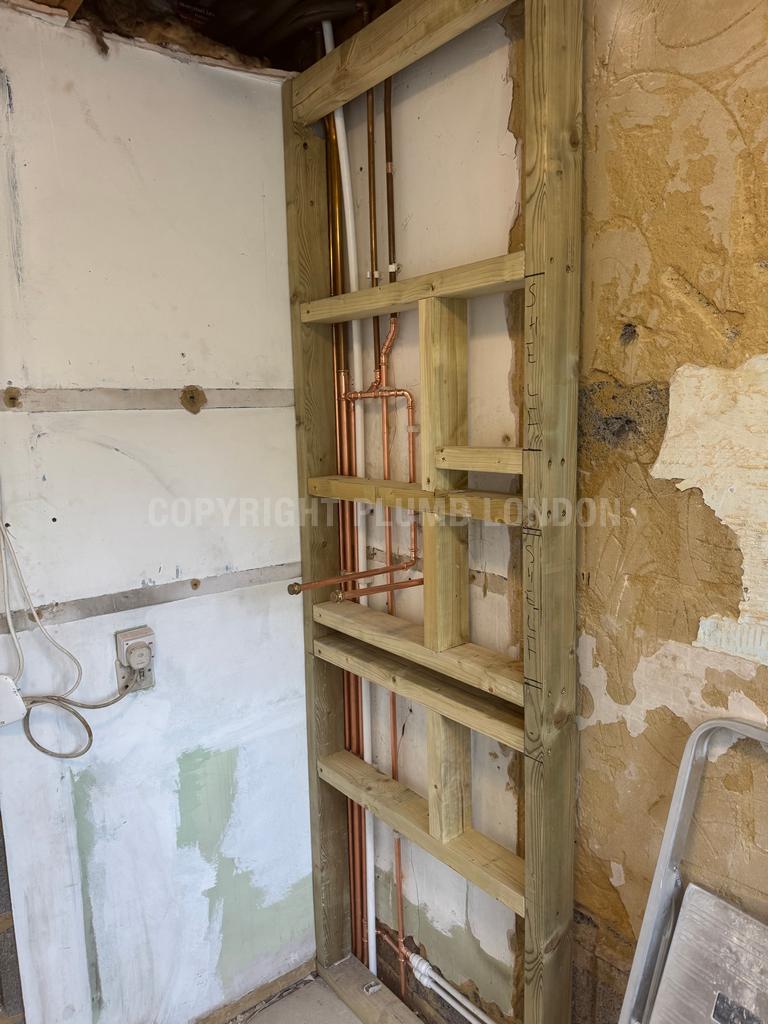

  • Installation of new structural joists and wall supports

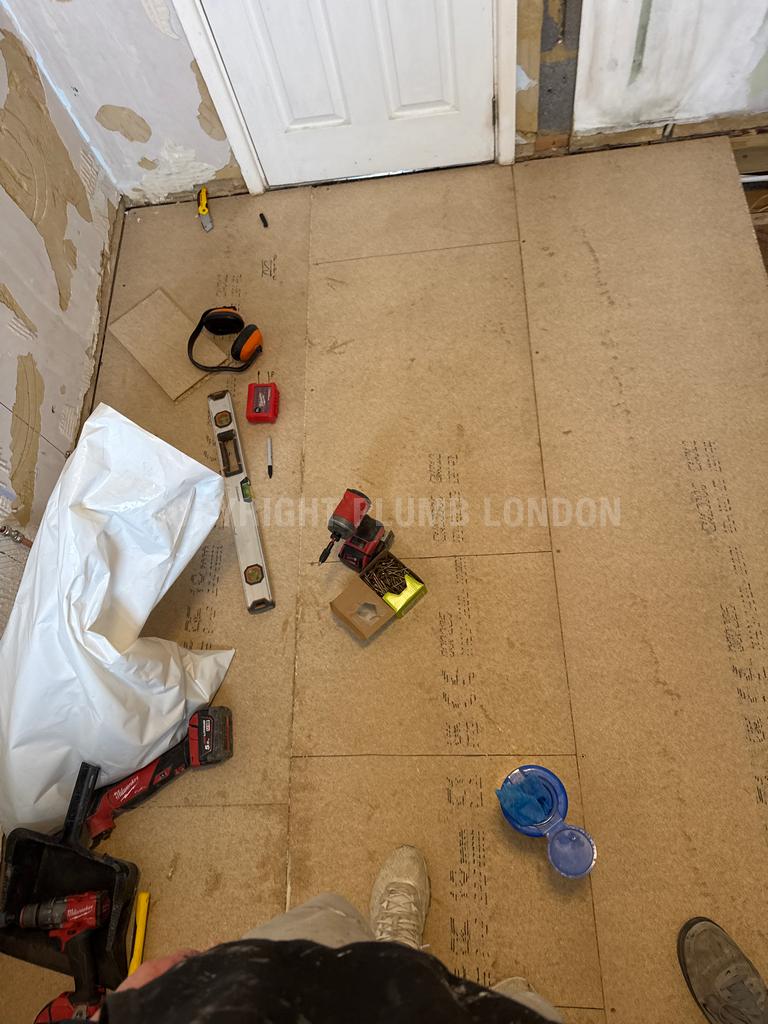

  • Installation of 18mm marine plywood flooring for durability and moisture resistance
  • Reinforcement of existing floor structure
  • Installation of new floorboards
  • Installation of waterproof membrane and Ditra matting system
  • Complete bathroom refurbishment including:

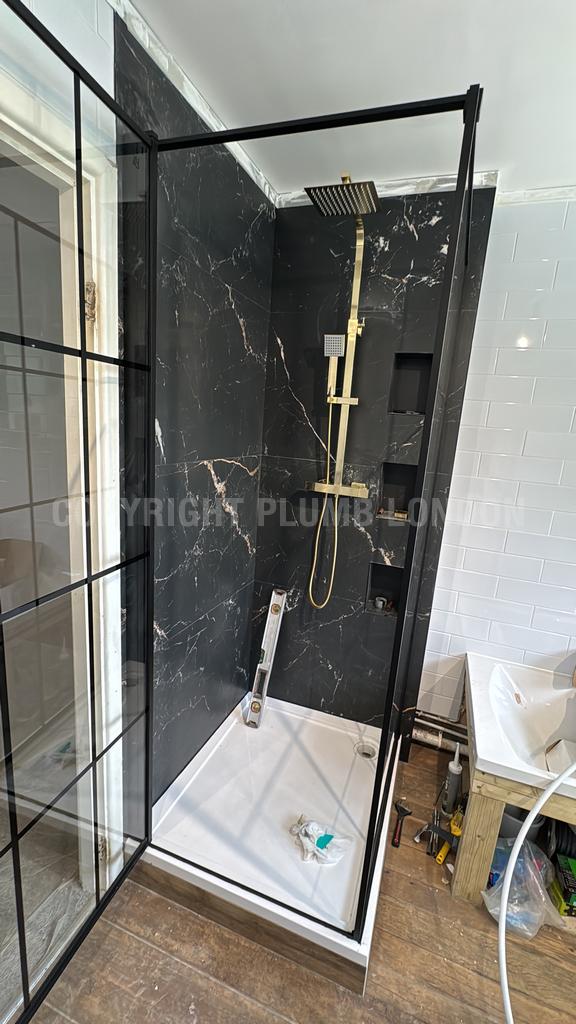

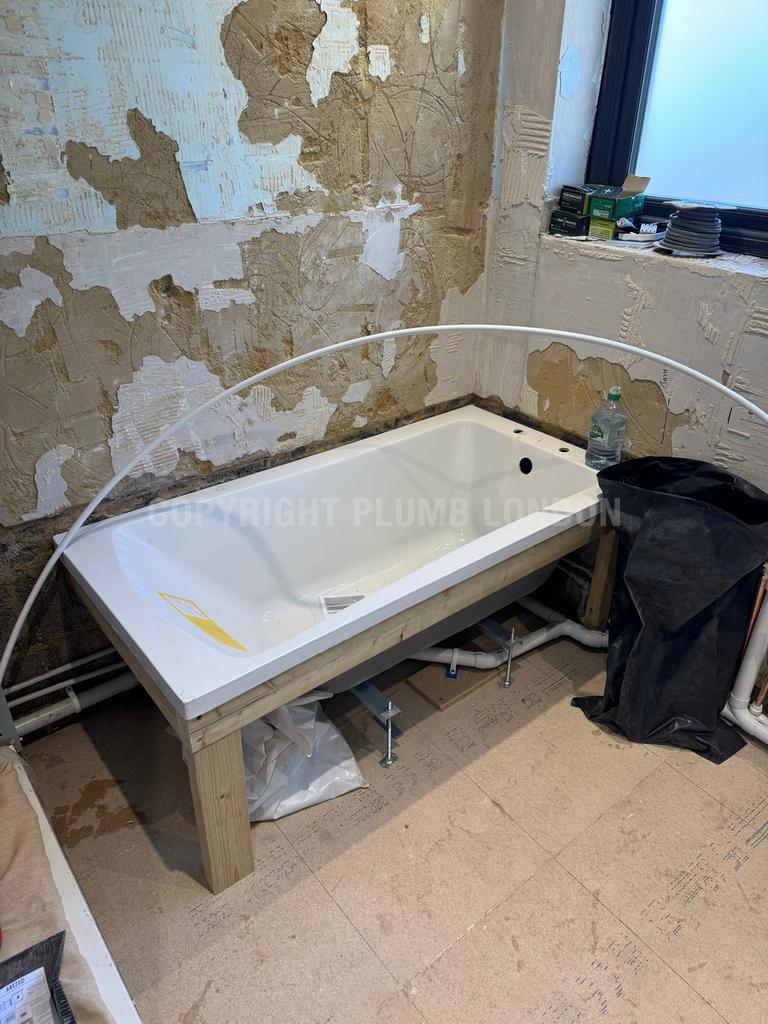

    • New bath and shower configuration
    • Installation of sanitaryware and fixtures
    • Tiling and finishing works
    • Installation of upgraded extractor fan for improved ventilation
  • Design consultation and layout optimisation
Contact Us

Key Work Completed

Initial works addressed visible defects, including failed mastic seals and a faulty toilet fill valve connection. However, continued signs of water ingress indicated failure beyond surface-level components. Left unresolved, continued water ingress would have led to further structural deterioration and potential failure of the floor system.

Access works exposed significant deterioration within the floor structure, with prolonged moisture exposure resulting in weakened and unstable floorboards. At this stage, the issue moved beyond a plumbing defect and into a structural concern.

Use of the bathroom was halted, and a full remediation strategy was implemented. This included removal of all compromised materials, installation of new joists with 18mm marine plywood flooring, reinforcement of structural supports, and reconstruction of the floor system to restore load-bearing integrity.

As part of the rebuild, a waterproof membrane system was installed alongside Ditra matting to protect against moisture penetration and movement within the tiled floor structure. An upgraded extractor fan system was also installed to improve airflow and reduce the risk of future condensation-related issues.

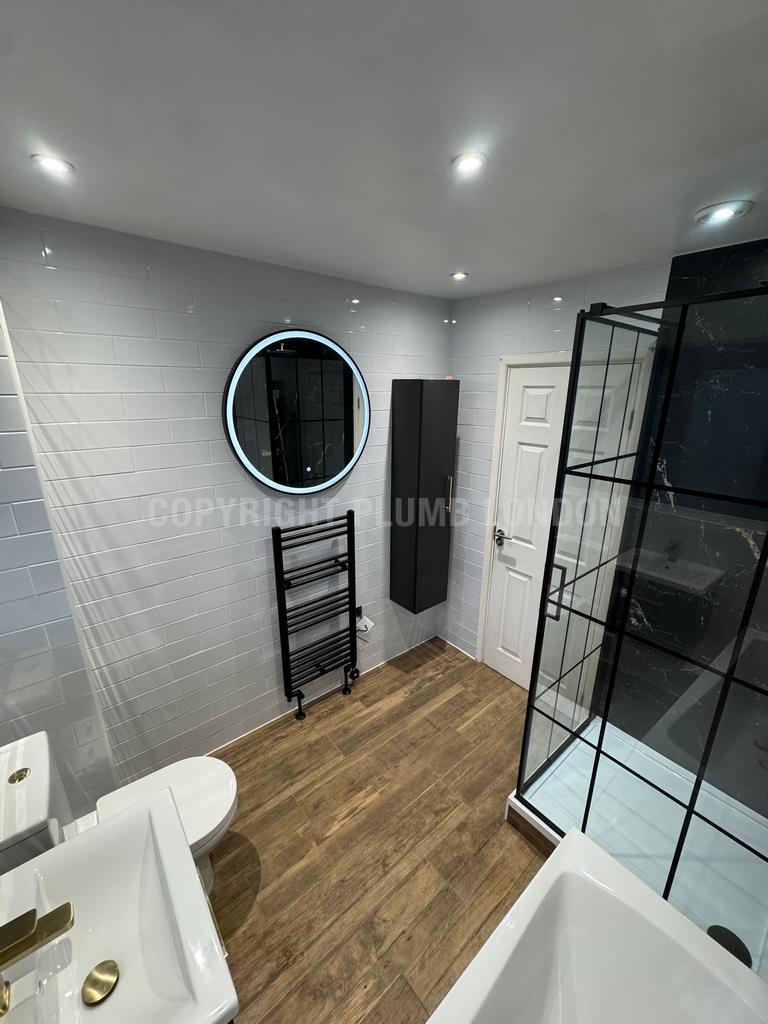

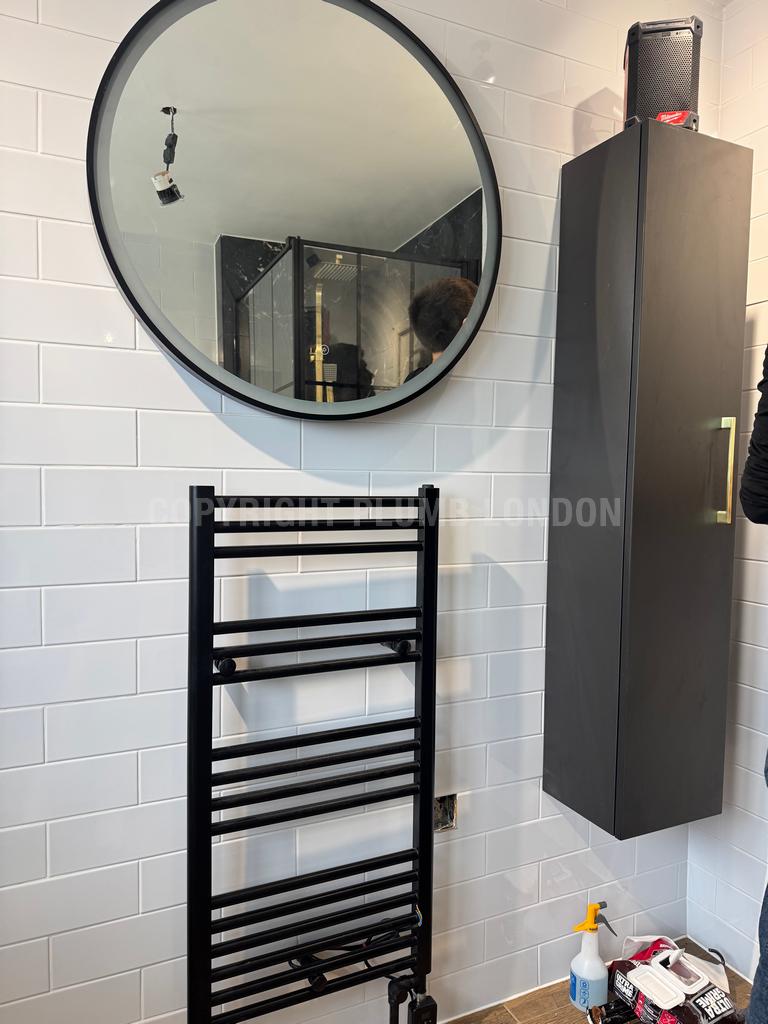

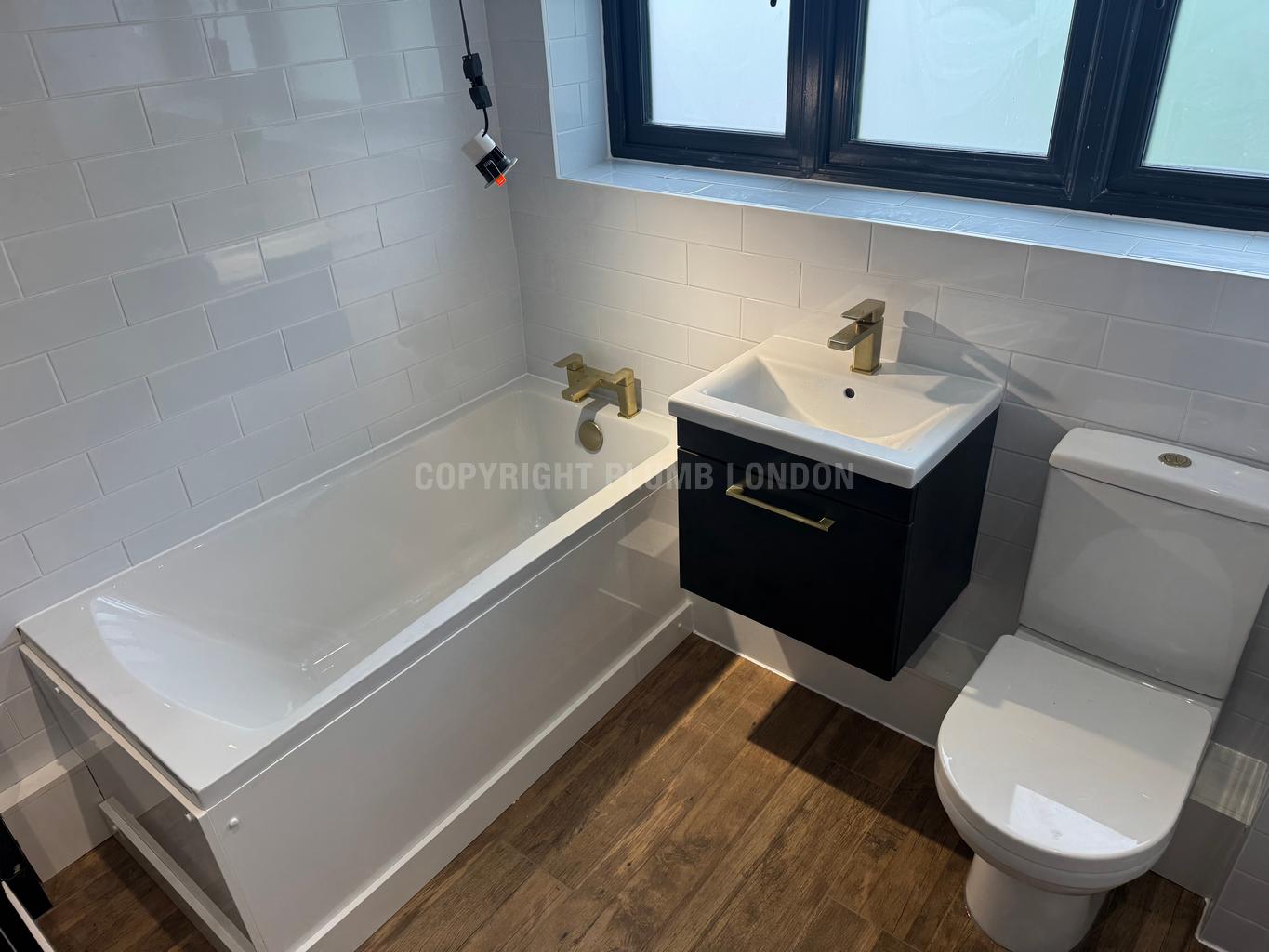

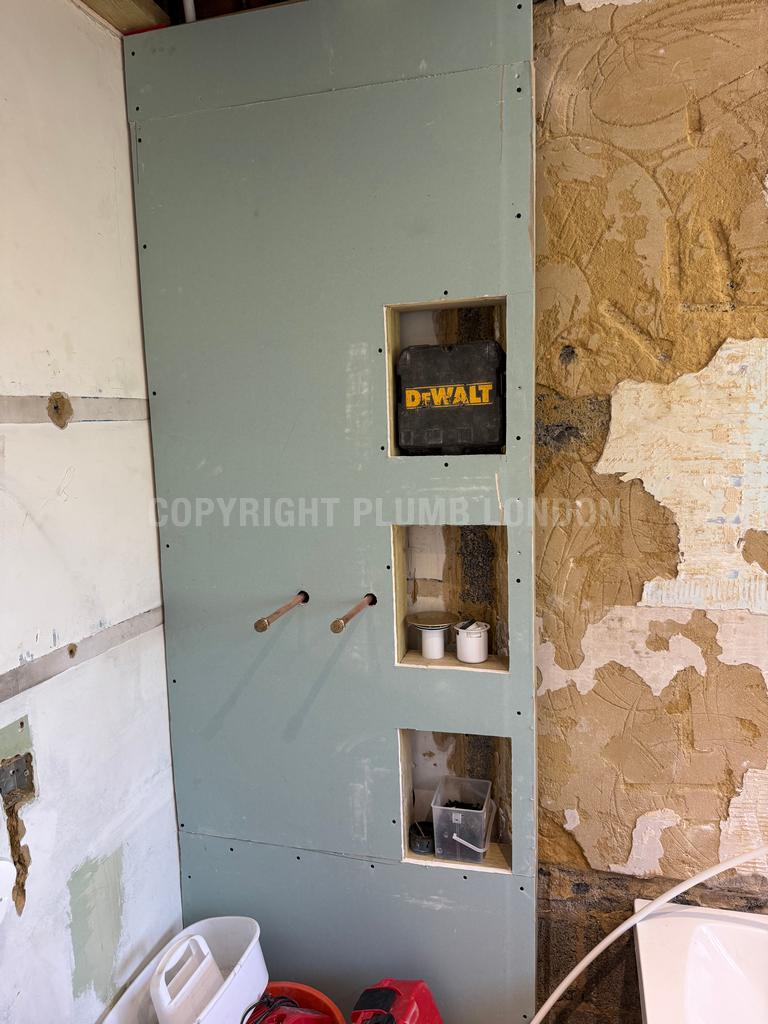

With the structure stabilised, a full bathroom refurbishment was carried out. The system was reconfigured to improve layout and usability, while upgraded fixtures and finishes were installed to support long-term performance.

All stages of the works — including structural rebuild, waterproofing, plumbing installation and finishing — were delivered by Plumb London’s in-house team, ensuring full control over quality and delivery.

The combination of structural repair, waterproofing systems and improved ventilation ensured the bathroom was not only restored, but protected against future failure.

Environment / Operational Considerations

All works were carried out within an occupied residential property, requiring controlled access and careful sequencing throughout.

Given the presence of structural damage, temporary or partial repair was not a viable option. The approach prioritised full resolution of both the plumbing fault and its impact on the building structure.

Additional Works and Building Protection

The structural repair element was critical in preventing further deterioration beyond the bathroom itself.

Water ingress had already affected flooring and posed a risk to the ceiling below. By removing all compromised materials and rebuilding the structural base, the works eliminated both the source of the issue and its wider impact on the property.

Programme

Initial Investigation: April 2025
Refurbishment Works: May 2025
Completion: Late May 2025

All works were completed within the planned timeframe, including additional structural repairs identified during the project.

Project Value

Total Investment: £21k (inc. VAT)

This project reflects a full structural repair and complete bathroom refurbishment, delivering a long-term solution rather than a temporary repair.

A formal testimonial was not obtained for this project. However, the client approved the full scope of works and confirmed satisfaction with the final outcome.

Location

This project was carried out in Warley, Brentwood (CM14), with Plumb London regularly supporting residential properties across Brentwood, Shenfield and the wider Essex area.

Contact Us

Conclusion

This project demonstrates Plumb London’s ability to identify and resolve issues that extend beyond standard plumbing repairs, delivering coordinated solutions that address both system failure and structural integrity.

From initial leak investigation through to full bathroom refurbishment and structural reconstruction, the works delivered a long-term solution focused on performance, durability and protection of the property.

FAQs

Can a small bathroom leak cause structural damage?
Yes. Even intermittent leaks can lead to prolonged moisture exposure, weakening floorboards and structural supports over time if not properly addressed.

When does a bathroom repair become a full refurbishment?
Where underlying damage affects structural elements or waterproofing systems, a full refurbishment is often the most effective long-term solution.

What materials help prevent future bathroom leaks?
Systems such as waterproof membranes, Ditra matting, moisture-resistant flooring and effective ventilation all help protect against future failure when installed correctly.
