Shower Tray Replacement, Waterproofing & Bathroom Refurbishment in Wimbledon

Project Summary

Location: Wimbledon, South West London

Client: Residential Homeowner

Services Provided: Bathroom plumbing, shower installation, waterproofing, tiling, drainage testing, macerator servicing

Key Works: Shower tray replacement, Bristan Zinc 2 mixer installation, full tanking system, pipework alterations, enclosure installation, ceiling repair, downstairs macerator service

Project Type: Bathroom refurbishment and system upgrade

Contact Us
Image link

Project Overview

Plumb London was instructed to replace a failing shower installation and upgrade the surrounding enclosure. The existing setup required full removal due to deterioration in both fittings and finishes, with additional implications for waterproofing and ceiling integrity.

The objective was not just replacement, but to deliver a controlled, watertight installation that reduced future risk of leaks, improved usability, and brought the bathroom up to a reliable standard.

Scope of Works

  • Isolate water and heating systems and protect all working areas
  • Remove existing shower tray, fittings, and wall finishes
  • Inspect and prepare subfloor and wall structure
  • Alter pipework to suit new layout and components
  • Install new shower tray and drainage connection
  • Fit new shower mixer and associated pipework
  • Apply waterproof tanking system and re-tile enclosure
  • Carry out ceiling repair and redecoration
  • Install shower enclosure and complete final fix
  • Test system and reinstate services
  • Service downstairs macerator and complete minor tiling works
Contact Us

Key Work Completed

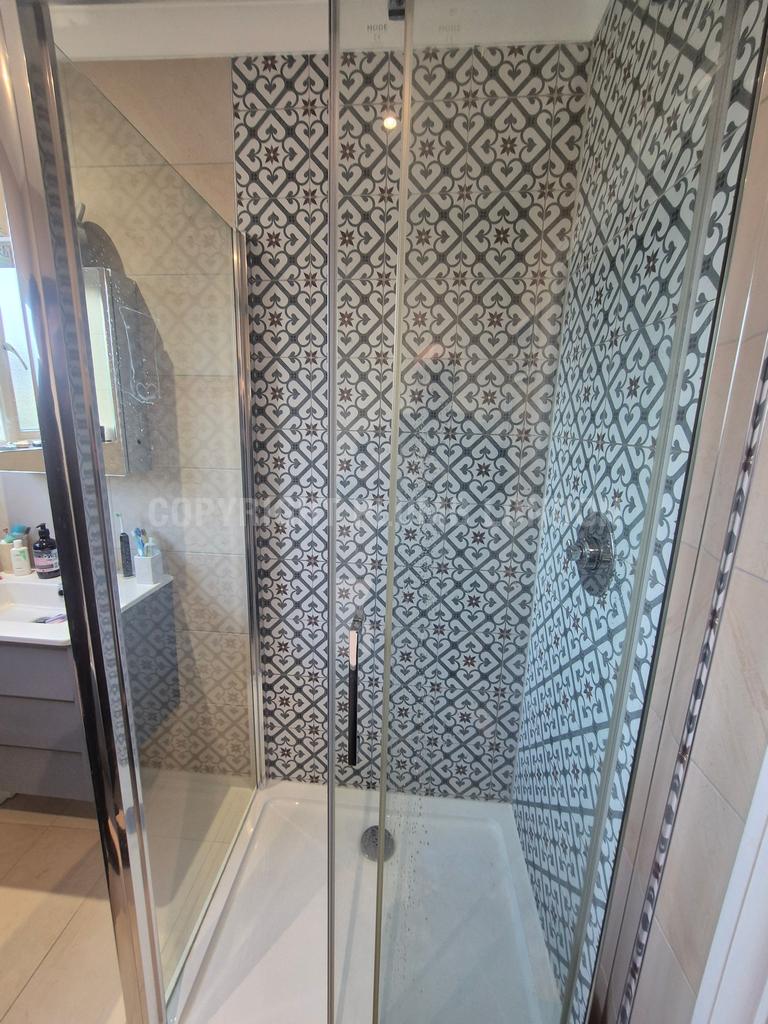

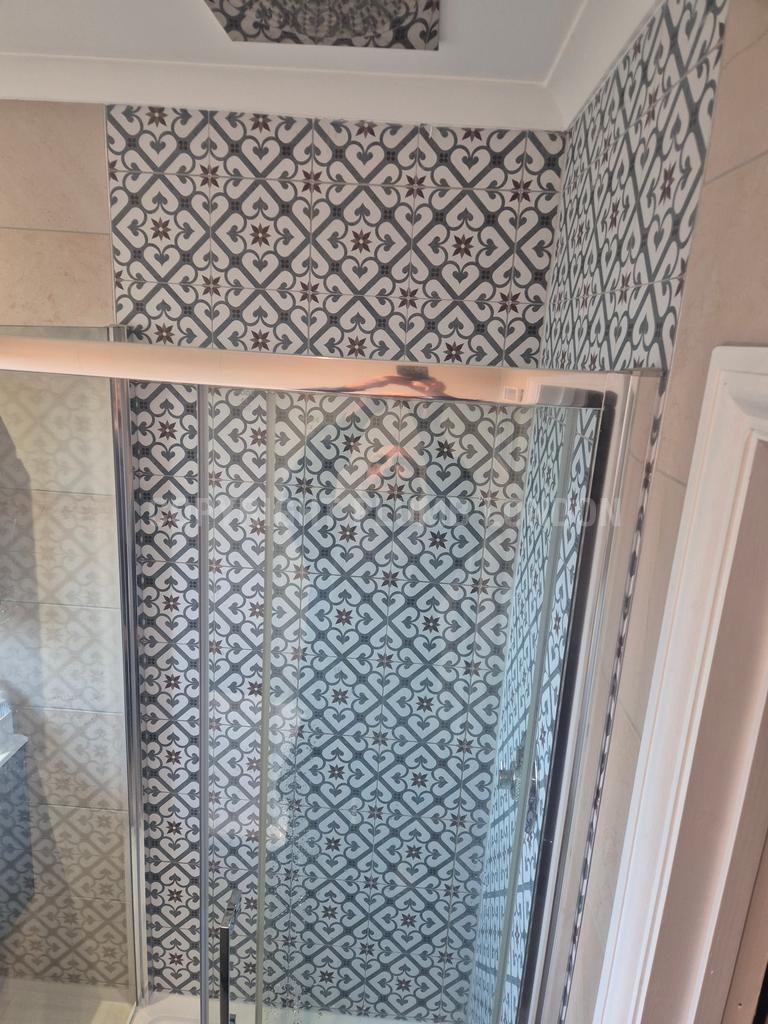

  • Full removal of existing shower tray and enclosure

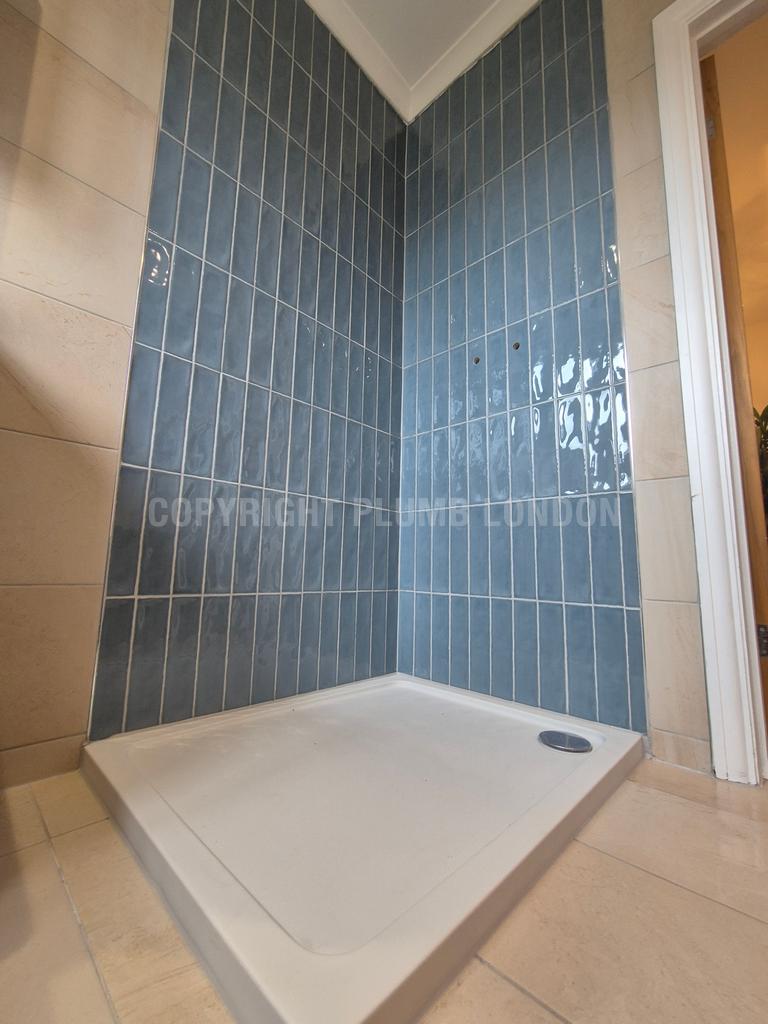

  • Installation of 1000mm x 800mm shower tray with tested waste connection

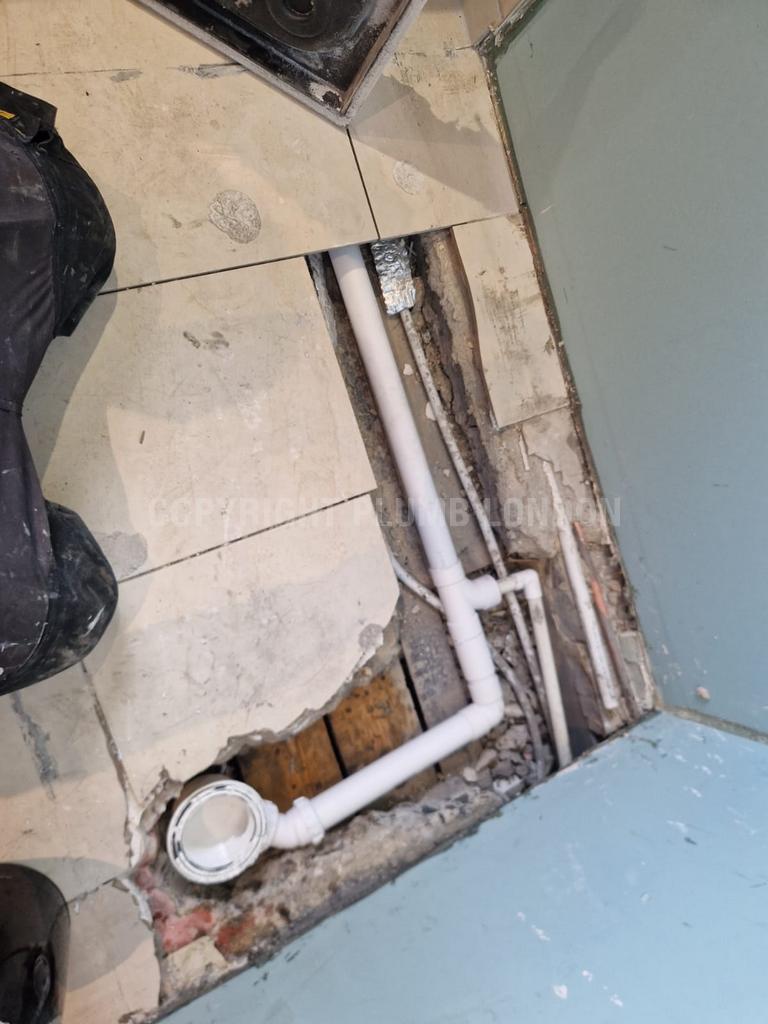

  • Pipework alterations to suit new configuration

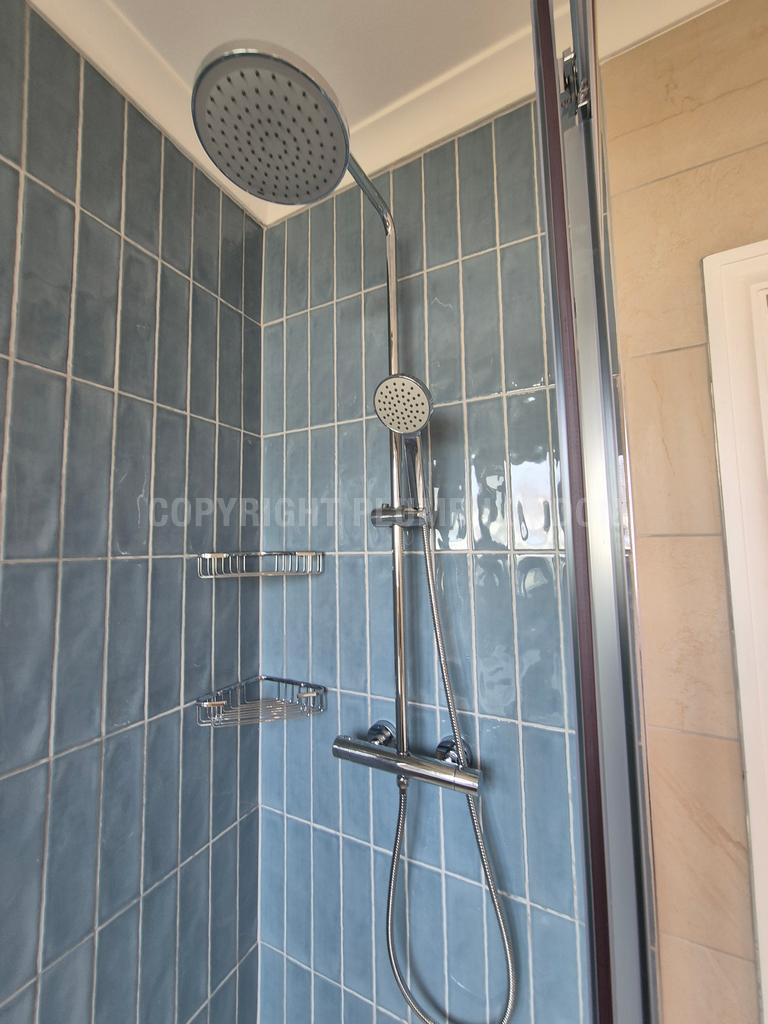

  • Installation of Bristan Zinc 2 shower mixer and shower heads
  • Full tanking and waterproofing system applied to enclosure

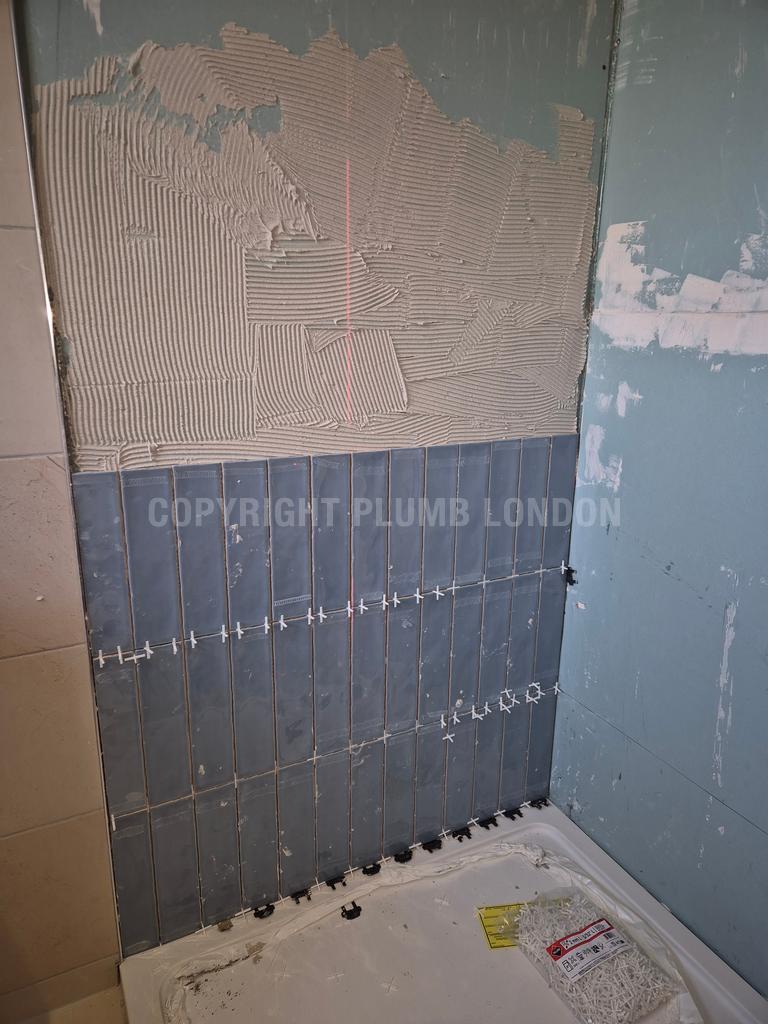

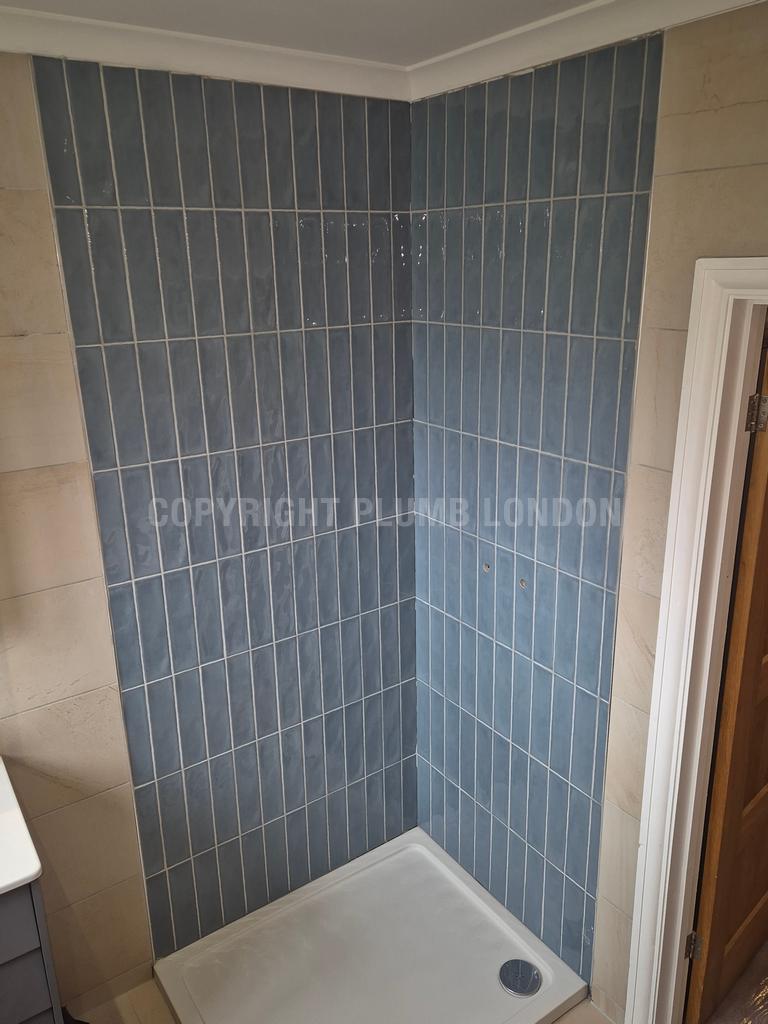

  • Installation of new wall tiles (client supplied), grouted and sealed

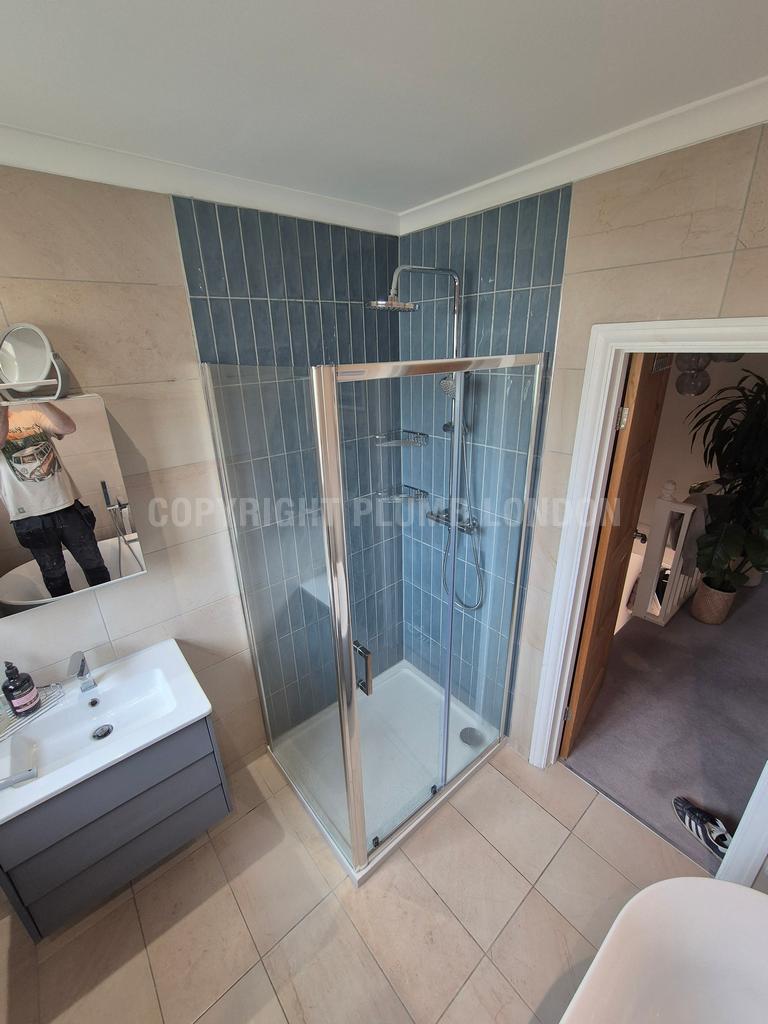

  • Installation of sliding shower door and side panel with watertight sealing
  • Ceiling made good following removal of previous ceiling-mounted shower
  • Bathroom ceiling redecorated with moisture-resistant paint
  • Macerator serviced and descaled in downstairs bathroom
  • Installation of six wall tiles above downstairs basin

Environment / Operational Considerations

Works were carried out within an occupied residential property. Daily protection and cleaning ensured minimal disruption. Careful coordination of water isolation and reinstatement was required, alongside controlled sequencing of plumbing, tanking, and tiling to allow for curing times and performance integrity.

Additional Works and Building Protection

Full property protection was applied prior to works commencing. The subfloor was inspected following removal of the existing tray. Ceiling repairs were required due to the previous installation. Waterproofing measures were upgraded beyond a like-for-like replacement to reduce long-term risk.

Programme

Total Duration: 5 Days

Works were sequenced to allow for safe installation, drying times, and staged testing.

Project Value: Not disclosed

Project Value

Total Investment: £21k (inc. VAT)

This project reflects a full structural repair and complete bathroom refurbishment, delivering a long-term solution rather than a temporary repair.

Nick and Steeve were absolutely fantastic – their work was done quickly, efficiently and to a really high standard. They provided excellent advice throughout and left the house and bathroom in particular very tidy every day. We are very pleased with the results and will definitely request to have them for future jobs.

Residential Homeowner
They provided excellent advice throughout

Location

Wimbledon, South West London

Serving surrounding areas including Raynes Park, Southfields, Putney and Morden.

Contact Us

Conclusion

This project demonstrates a controlled approach to bathroom refurbishment where failure risk extends beyond visible components. By combining pipework alterations, waterproofing, and enclosure installation within a single coordinated programme, the result is a durable, compliant, and fully tested shower system.

The works reinforce Plumb London’s ability to deliver not just replacements, but complete system upgrades with attention to long-term performance and building protection.
